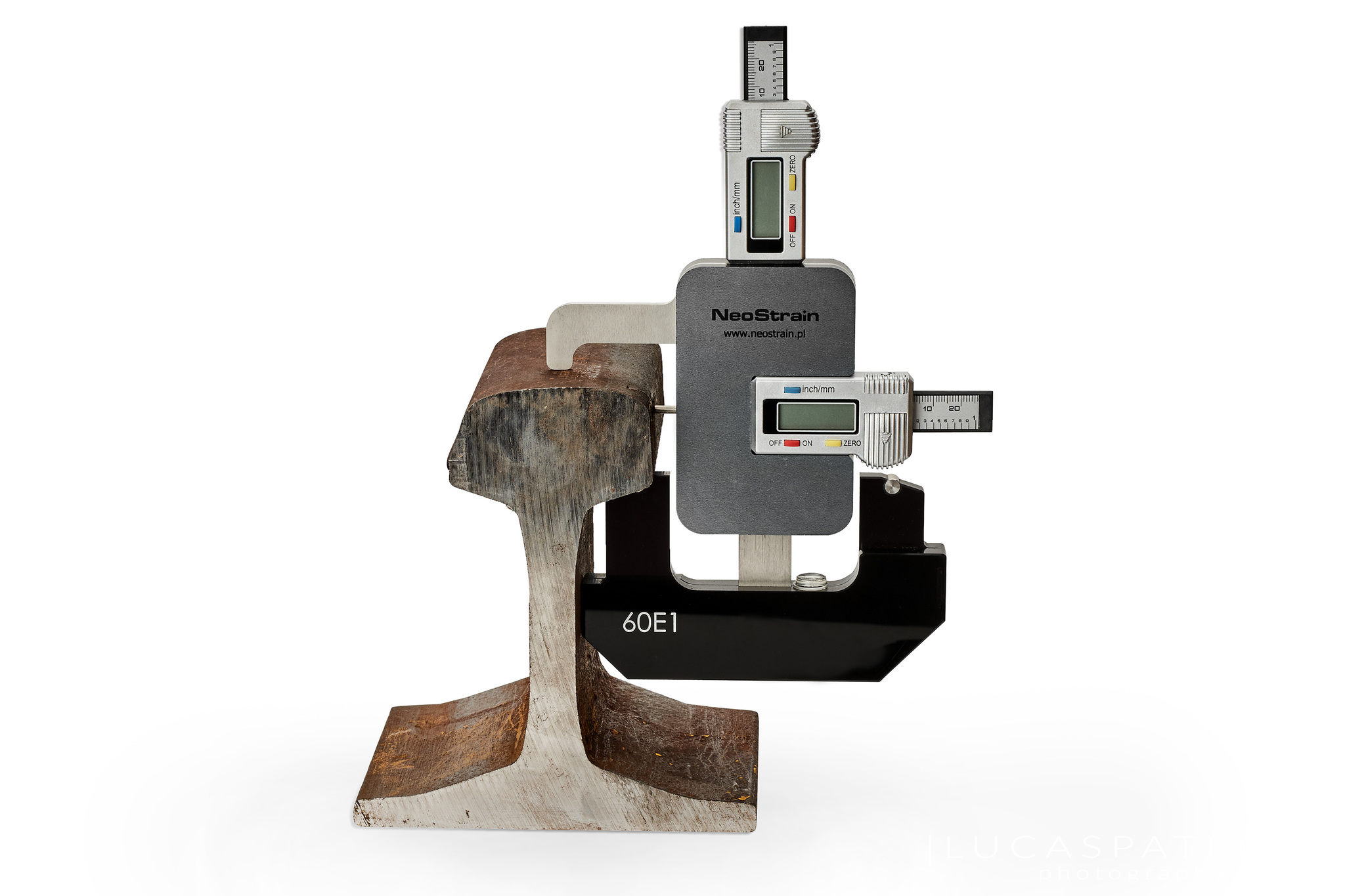

Railway Products: Electronic Head-Rail Wear Indicator
ELECTRONIC TYPE:
- product code – Prbse 60/49,
- dedicated for rail types S-60 (60E1) and S-49 (49E1),
- measuring the wear of the rolling rail surface,
- measurements are taken in the vertical axis (vertical wear) and 15 mm below the rolling surface of the head-rail (side wear),
- results for both measurements are displayed on the separate scales.
PRODUCT FEATURES
- measurement range - 21 mm for side wear, 22 mm for vertical wear,
- tolerance - 0,01 mm,
- accuracy - 1,0 mm,
- dimensions - 220x160x20 mm,
- working temperature -15 oC up to + 50oC
- power supply - LR44,
MAIN BENEFITS:
- light to carry,
- very easy to use,
- visible scale – displaying both results at same time,
- proper accuracy,
- multifunction – measures both rail types (S-60 / S-49),
- longlasting – made of high quality stainless steel.
- product code – Prbse 60/49,
- dedicated for rail types S-60 (60E1) and S-49 (49E1),
- measuring the wear of the rolling rail surface,
- measurements are taken in the vertical axis (vertical wear) and 15 mm below the rolling surface of the head-rail (side wear),
- results for both measurements are displayed on the separate scales.
PRODUCT FEATURES
- measurement range - 21 mm for side wear, 22 mm for vertical wear,
- tolerance - 0,01 mm,
- accuracy - 1,0 mm,
- dimensions - 220x160x20 mm,
- working temperature -15 oC up to + 50oC
- power supply - LR44,
MAIN BENEFITS:
- light to carry,
- very easy to use,
- visible scale – displaying both results at same time,
- proper accuracy,
- multifunction – measures both rail types (S-60 / S-49),
- longlasting – made of high quality stainless steel.
To purchase the product, please contact the sales department: CONTACT
